ASMR Build: Ryzen 9950X3D + RX 9070XT Performance PC

James Dawson 3 days ago Featured Tech News, Featured Tech Reviews, Gaming PC

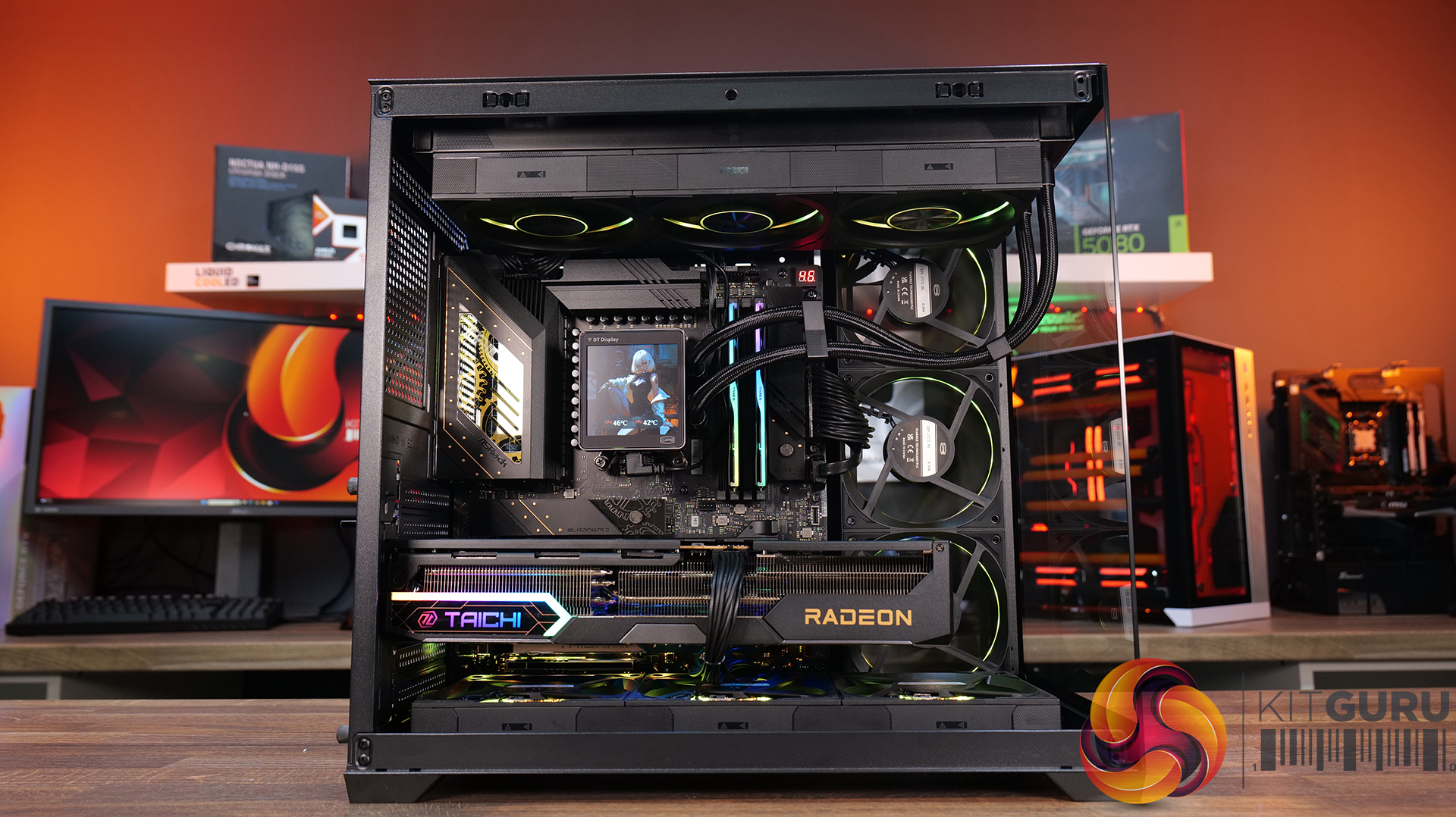

With Amazon Prime Day almost upon us, there will no doubt be some great discounts and offers on PC tech. To showcase its Amazon Prime Day offers CPS PCCOOLER asked us to build a system with its latest C3 T700 dual chamber case, new F7 X120 fans and some other PCCOOLER goodies, all available on Prime Day. Inside the C3 T700 we’ve built AMD’s most powerful gaming PC with a Ryzen 9 9950X3D CPU and Radeon RX 9070 XT Taichi GPU from ASRock!

Case – PCCOOLER C3 T700 Black – Pre-launch no link currently – Price TBA

Compatible with back-connect motherboards and flagship graphics cards up to 400mm long.
Extensive cooling support with up to ten 120mm fans, multiple 360mm radiator installation and CPU coolers up to 175mm supported.
The panoramic 270-degree glass gives an unobstructed view inside the system with easy access via a clip-on quick-release side panel.

Specifications

Case Type: ATX
Dimensions: 420 x 285 x 400mm (LxWxH)
Motherboard Support: ATX / M-ATX / ITX with BTF Compatible
Expansion Slots: 7
Storage Bays: 2 x 2.5”/1 x 3.5”
Max GPU Length: ≤400mm
Max CPU Cooler Height: ≤175mm
Max PSU Size: ATX ≤180mm
Pre-installed Fans: 4pcs
Fan Support: Top:120mmx3 / 140mmx2, Rear: 120mmx1, Side: 120mmx3 / 140mmx2, Bottom: 120mmx3 / 140mmx2
Radiator Support: Top: 240/280/360mm, Side: 240mm, Bottom: 240/280/360mm
Dust Filters: Top / Bottom
Font I/O: Type-C x1, USB 3.0 x1,USB 2.0 x1, MIC & AUDlO, Reset, Power Button

CPU Cooler – PCCOOLER DT360 ARGB Display – Available now from Amazon priced at $249.99 HERE.

DT360 ARGB Display features a detachable magnetic 3.4-inch IPS LCD screen with 480 x 480 resolution and 60 Hz refresh rate that can display customisable themes and real-time system information.
It's equipped with a copper micro-skived cold plate suitable for installation on all current AMD and Intel desktop CPUs with an all-ceramic bearing pump solution.
The included F7 X120 fans feature a wireless modular connection for less cable clutter, with 28mm thickness for concentrated airflow and high static pressure and a 27mm thick radiator with fourteen water channels and a high-density fin array.

Specifications

CPU Socket Compatibility: Intel LGA115X/1200/1700/1851, AMD AM4/AM5
Radiator Material: Aluminium
Radiator Dimensions: L394xW120xH27mm
Radiator Tube Length: 400mm
CPU Block/Pump Dimensions: 82x80x62mm(LxWxH)
Pump Speed: 2600RPM±10%
Cold Plate Material: Micro-Skived Copper
Pump Connector: 3-pin
Pump LED: 3-pin 5v ARGB
Fan Dimensions: 120x120x25mm
Fan LED: ARGB
Fan Speed (PWM): L:500-1500RPM±10%, M:500-2200RPM±10%, H:500-3000RPM±10%
Fan Max Airflow: 83CFM
Fan Max Air Pressure: 7mmH20
Noise (dBA): 15-33.1dB(A)
Fan Bearing: Ball Bearing
Fan Connector: 4-pin PWM
LCD Screen: 4” IPS 480×480 Resolution

Fans – PCCOOLER F7 X120 – Pre-launch no link currently – price expected to be around $50

28mm thick profile with a wide span variable section blade design for high airflow while minimising vortex turbulence and low operational noise.
A three-step speed control switch mounted on the fan hub allows for three speed profiles with upper limits of 1500, 2200 and 3000 rpm.
The wireless connection mechanism transmits signal and power through contact modules to eliminate cable mess for a clean aesthetic.

Specifications

Connector Type: 4-Pin PWM
Lighting Connector Type: 5V-3PIN
Lighting Type: ARGB
Fan Dimensions: 120x120x28mm
Fan Speed: L:500-1500RPM±10%, M:500-2200RPM±10%, H:500-3000RPM±10%
Max Air Pressure: L:1.7mmH2O, M:3.3mmH2O, H:5.7mmH2O
Max Airflow: L:55CFM, M:65CFM, H:83CFM
Fan Noise: L:15~22.3 dBA, M:15~28.9 dBA, H:15~33.1dBA
Bearing Type: Ball Bearing
Operating Voltage: 12VDC

Power Supply – PCCOOLER YS1200 – Available now from Amazon priced at $278.68 HERE.

Fully modular, 80+ Gold and Cybenetics Gold rated with ATX 3.1 and PCIE 5.1 certification and a 12-year warranty.
Features the latest PCI-E 5.1 12V-2×6 connector with standard 16AWG copper wire and highly durable copper alloy terminals providing 600W capability.
Equipped with all Japanese Electrolytic capacitors, a 135mm FDB fan for low noise ouput and a hybrid cooling system with zero rpm mode.

Specifications
